2003 2010 Viper Short Shifter Knob Install

Viewing 10 reply threads

Author

Posts
- fhrzr1
  Member

  March 10, 2017 at 8:42 pm

  Post count: 48

  #376411

  Any comments on the install?
- Shannon Whitehead
  Keymaster

  March 10, 2017 at 9:42 pm

  Post count: 274799

  #376415

  Too simple for a how-to thread?
- Shannon Whitehead
  Keymaster

  March 11, 2017 at 5:28 am

  Post count: 274799

  #376468

  Did the same mod when I had the previous gens. Never got used to the 3 foot tall shifter, this was one of the easy and generally worthwhile mods to do.

  Thanks for posting.
- fhrzr1
  Member

  March 13, 2017 at 11:39 am

  Post count: 48

  #376919

  Thank you !!
  I agree.
- Old Surfer
  Member

  June 18, 2017 at 9:26 am

  Post count: 83

  #401113

  Looks like the same shaft and bottom nut as the OEM shifter in a ’02. Why won’t this knob fit on a ’02?
- CoveySRT10
  Member

  July 31, 2017 at 11:11 am

  Post count: 20

  #409435

  Where did you get the ACR Knob from?
- City
  Member

  July 31, 2017 at 12:04 pm

  Post count: 2691

  #409473

  Moving this to memorialize in our “how tos”.

  Thanks fhrzr1!
- Boosted Motorsports
  Member

  August 7, 2017 at 3:23 pm

  Post count: 749

  #411003

  What is the part number for this 03-10 shorter shift knob?
- jpmst3
  Member

  November 26, 2021 at 3:03 pm

  Post count: 248

  #574739

  In the process of doing this now. Just waiting for the replacement to arrive, damn supply chain!
- ViperBobZ
  Member

  December 13, 2022 at 7:15 pm

  Post count: 90

  #593024

  Wouldn’t this be a better and less expensive option? https://www.ebay.com/itm/225039857505?chn=ps&norover=1&mkevt=1&mkrid=711-117182-37290-0&mkcid=2&mkscid=101&itemid=225039857505&targetid=1645685074048&device=c&mktype=&googleloc=9011520&poi=&campaignid=16730423415&mkgroupid=135815925780&rlsatarget=pla-1645685074048&abcId=9300841&merchantid=115326199&gclid=Cj0KCQiA4uCcBhDdARIsAH5jyUn2EgrAFxajTLQQWXa47_2yKTBnCh8Cq-eXiXmf5aAj9J8k7T6_r20aAi9cEALw_wcB

  It seems one can keep their original shift knob and still lower it!
- Shannon Whitehead
  Keymaster

  June 11, 2025 at 2:41 am

  Post count: 274799

  #26875

  2003-2010 Viper Short Shifter Knob Install

  1. Push leather boot down the original shifter shaft.

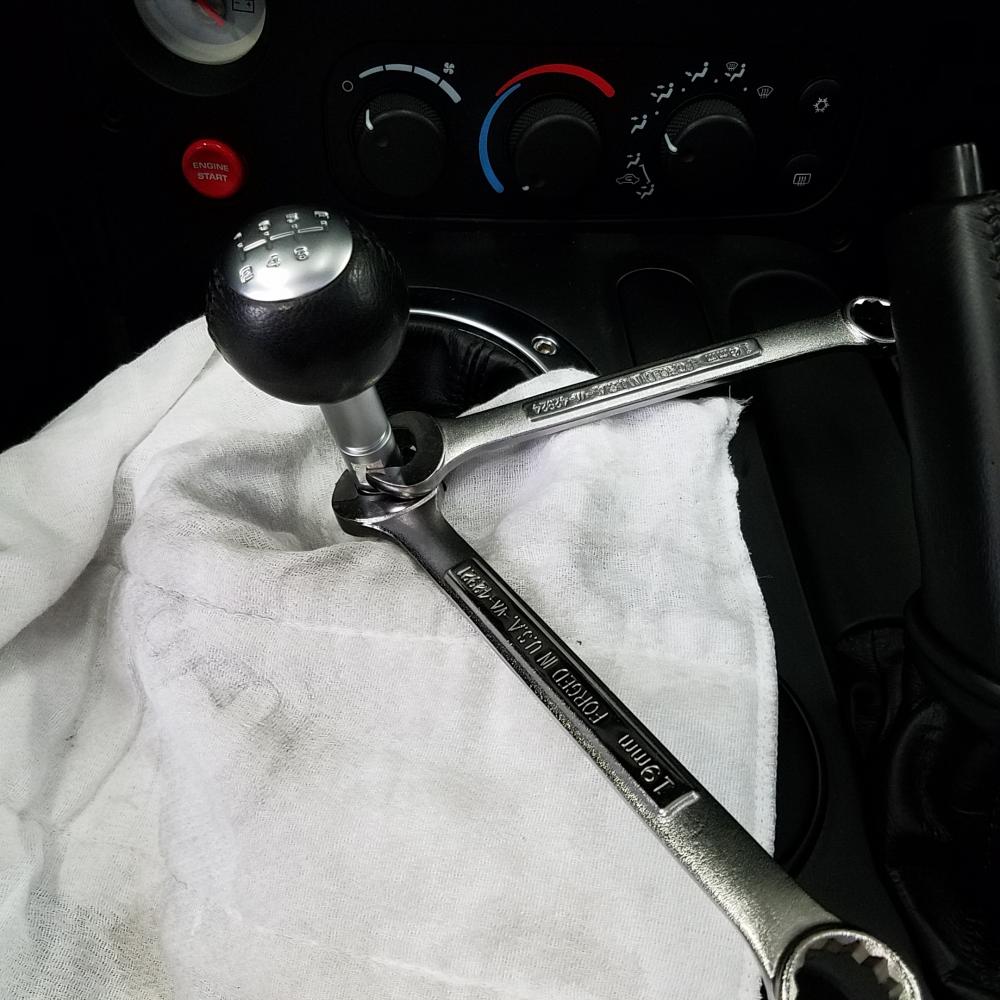

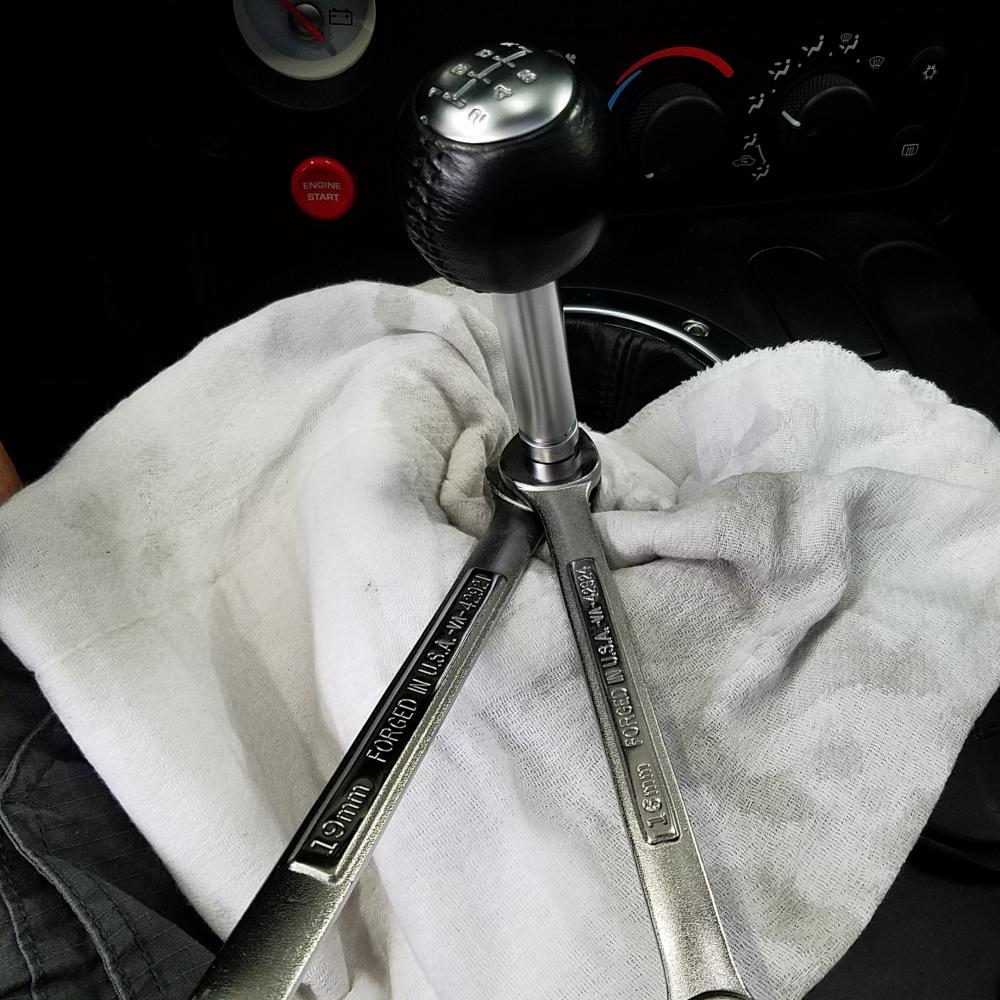

  2. Place a 16mm and 19mm wrench and remove original shaft. Use a towel to protect bezel and remove original knob.

  3. Install short knob using the same 16mm and 19mm wrench.

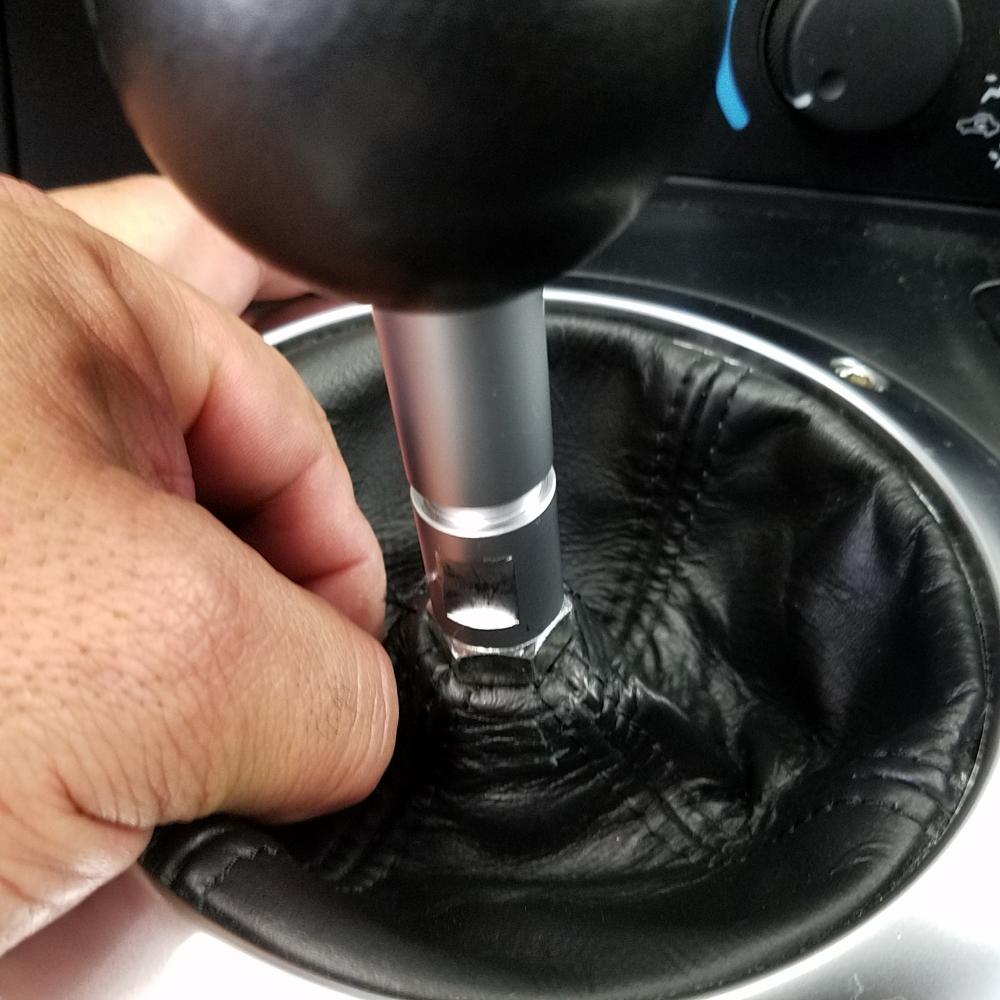

  4. Pinch both sides of the leather boot with your fingers and gently lift up the shifter shaft.

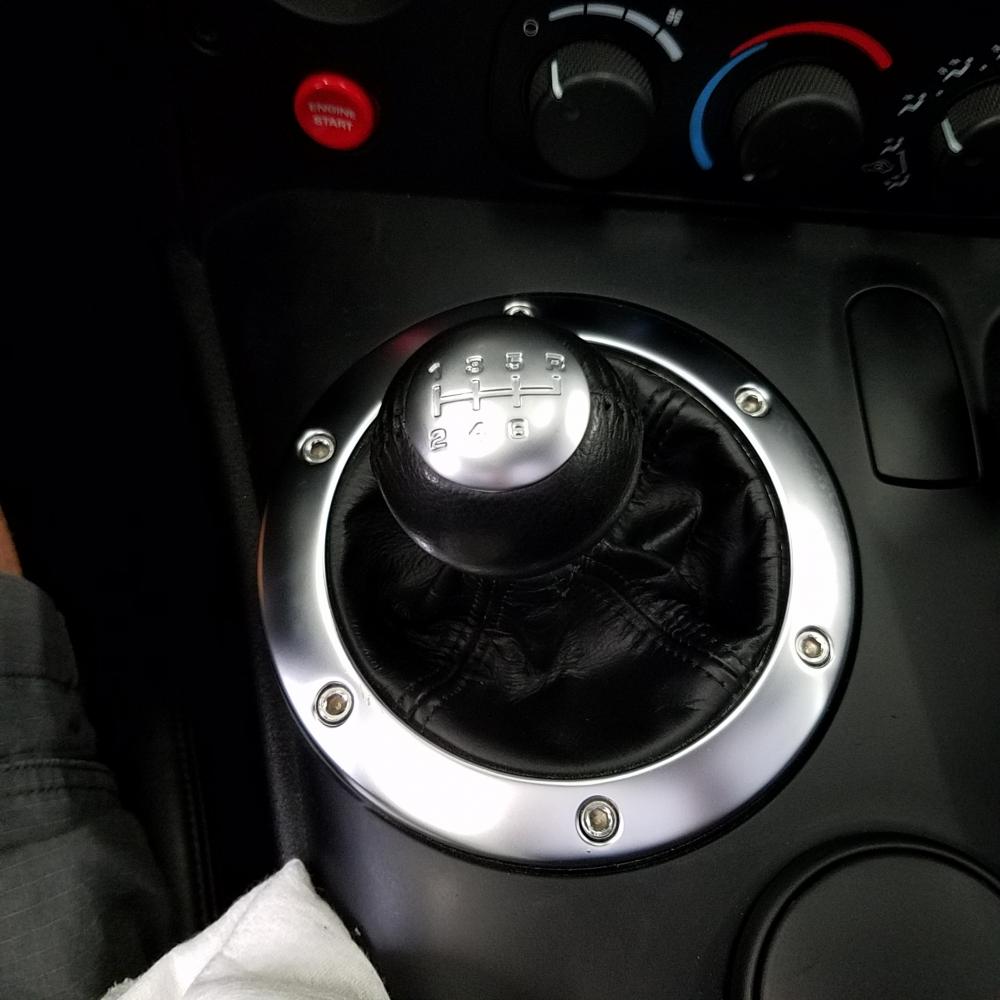

  5. New knob has been installed. Enjoy !!!!
