Overview:
This is an 8 lb lithium ion battery, charger, and bracket kit. This kit saves around 25+ lbs depending on the weight of the OEM or replaced battery.
Compatibility:

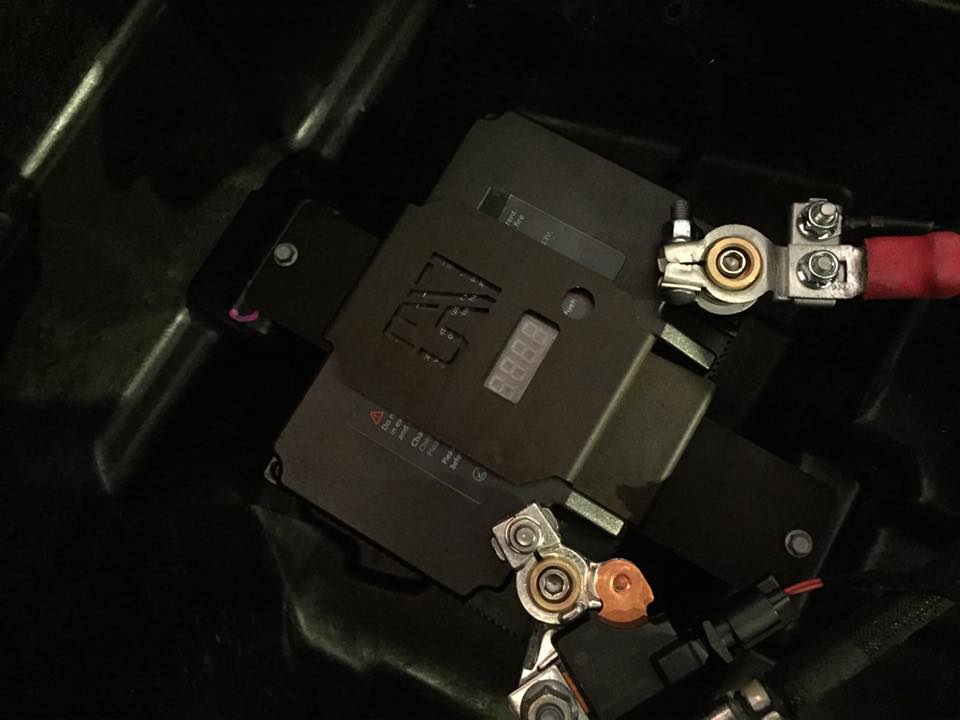

This is a bolt-in kit for Gen III, IV, or Gen V Vipers. This battery will function well under OEM electrical equipment loads. The alternator is designed to sustain OEM electronics with the engine running. Extended accessory operation without the engine running may drain the battery more quickly than the OEM battery. Evaluate the load of aftermarket electronic accessories prior to using them with this battery. Significant electrical loads may not work well in conjunction with this battery.
As with any lithium battery, it does not charge well under 0 degrees C and is not suited for cold weather use.
Construction:
The battery is constructed to withstand the rigors of the automotive environment. The mechanical build is designed to be robust and handle vibrations well. Internal electrical circuitry ensures a safe worry free experience when using the battery properly. The protections include: Individually Protected Cells; Over Charge; Over Discharge; Short Circuit; Penetration; Thermal Shock; Protection against fires; Protection against explosions. The battery is electrically sized to perform well under most conditions.
Weight:

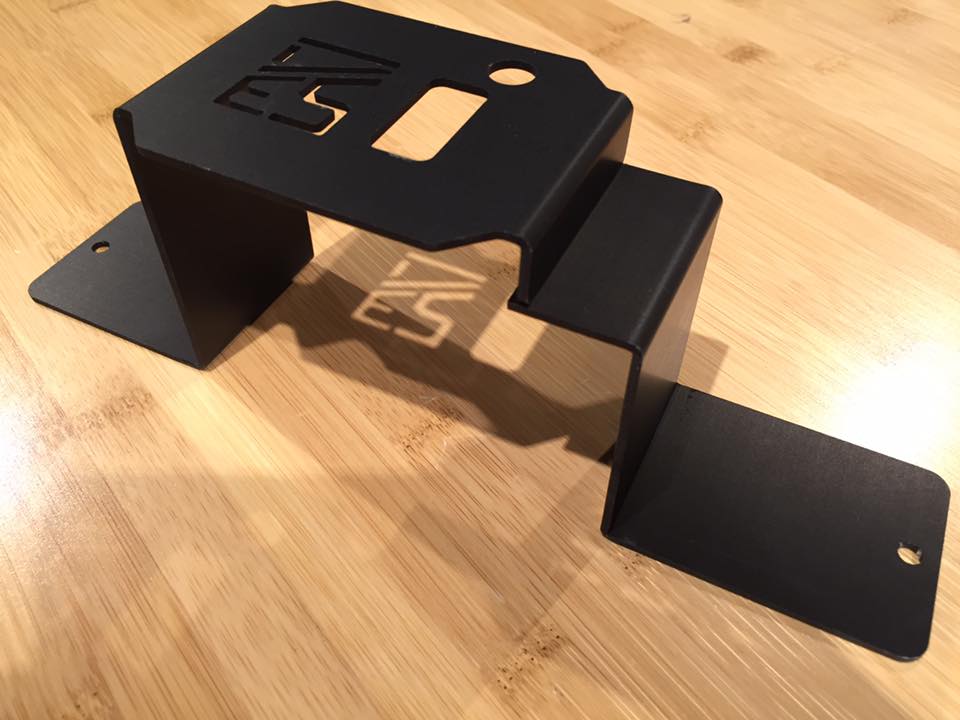

Battery and bracket weigh just at 8 lbs when considering the weight savings to the OEM battery brackets.
Electrical Specifications:
Nominal Capacity: 20Ah
Nominal Voltage: 12.8V
Watt-Hours: 256
Discharge Cut-off: 10V
Cranking Amps: 800
Charge Temperature: 0-45 degrees C
Discharge Temperature: -20-60 degrees C
Ordering Information:
http://dougshelbyengineering.com/Viper.html
DSE-VP-BA-004: Gen V 8 Pound Lithium Ion Battery Kit
DSE-VP-BA-005: Gen III, IV 8 Pound Lithium Ion Battery Kit
