For those who missed this thread: https://driveviper.com/forums/threads/16914-Black-open-ended-lug-nuts?
Available for purchase now on the website…

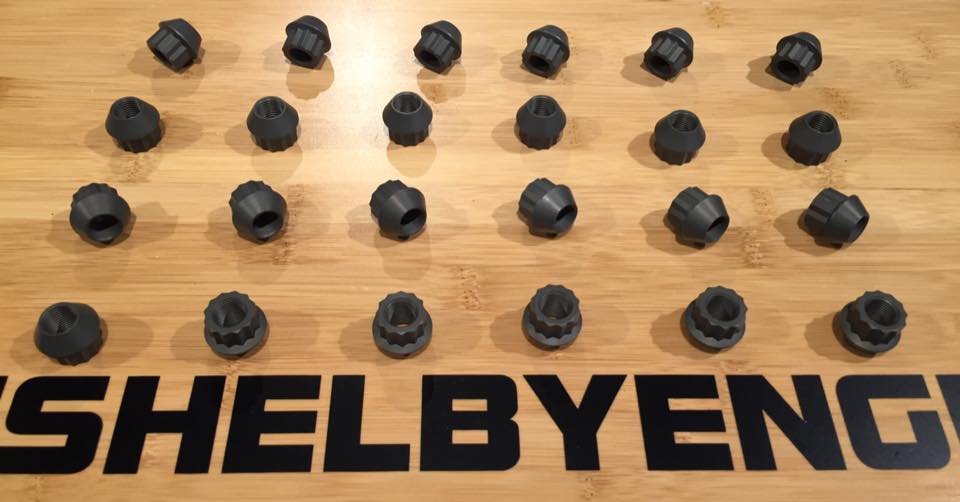

1/2-20 Forged Titanium Open-Ended Lug Nuts with Teflon Infused Coating
Overview:

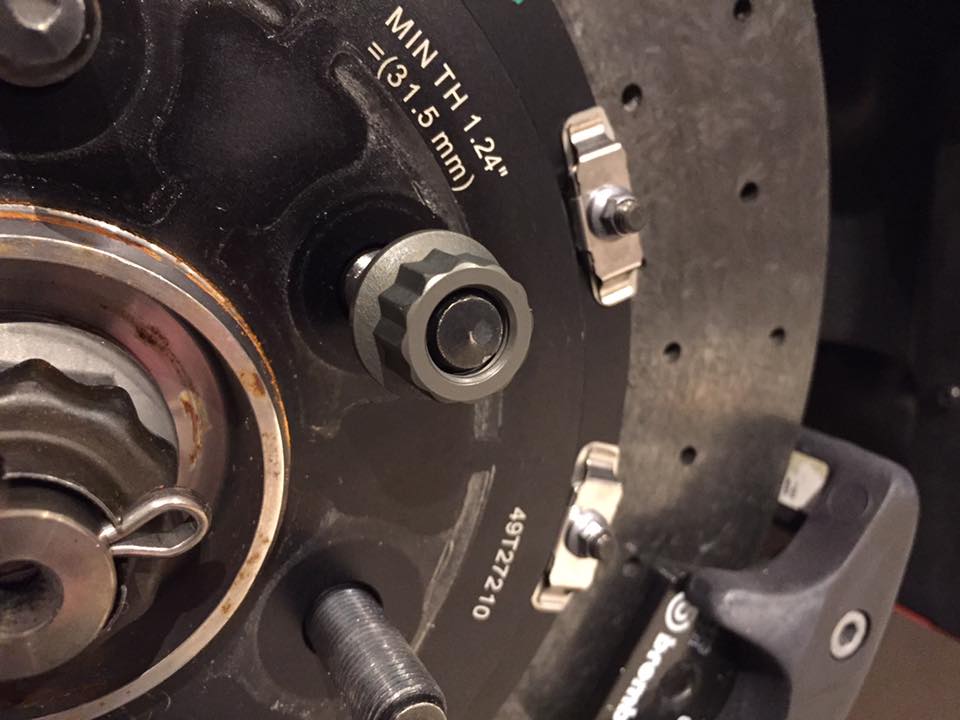

The open-ended titanium lug nuts serve 2 purposes: reduced rotating/unsprung weight over OEM and other aftermarket lug nuts and increased brake cooling by allowing heat to escape through the wheel studs.
Compatibility:
The lug nuts will fit any Viper 1992-2017 along with other vehicles with a ½-20 thread wheel stud. The nuts have a 60 degree seat angle. Outer diameter is 23.5mm requiring a 26mm minimum wheel port.
The design is a 17mm 12 point head, and is compatible with this type of socket. An example of a compatible socket driver is Sunex Tools 267217.
Construction:
Not “just” billet Titanium, these are a high-strength forging of 6AL-4V Titanium which are fully CNC machined after the fact to achieve precise threads and seats.
Titanium nuts can gall if anti-seize is not used. This is not required with these nuts as they have been coated with a durable Teflon-infused coating.

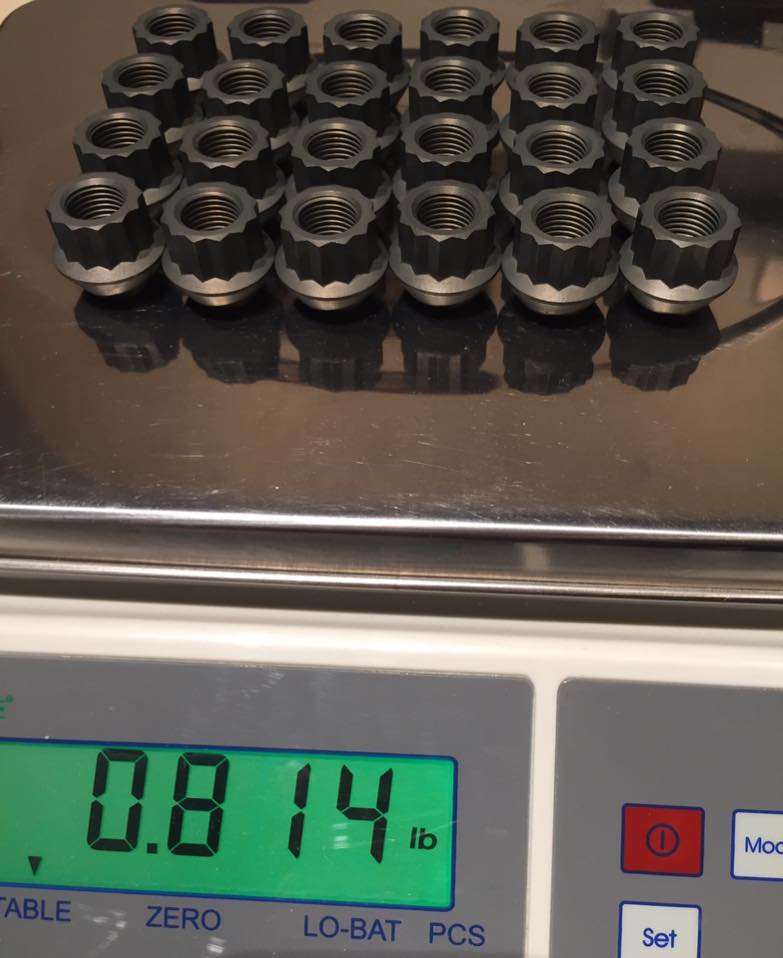

Weight:
Each lug nut weighs 0.036lbs. this is 39% of the weight of an OEM Viper lug nut.

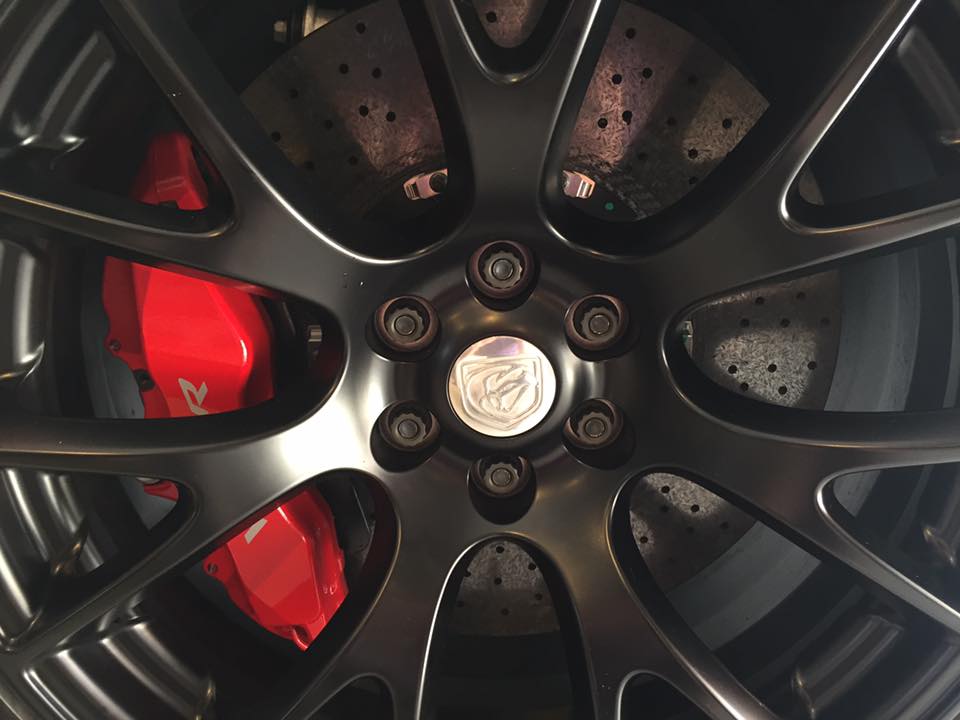

Installation Highlights:
– Hand tightening with a torque wrench is recommended to preserve the finish. Do not use an impact wrench. Take caution to avoid damage due to worn/damaged studs or damage due to over-torque or incorrect installation.
– The coating provides a reduced-friction surface similar to anti-seize and therefore requires a torque adjustment to maintain the intended force. Torque the lug nuts to ~80% of the recommended torque spec (roughly 80 ft-lbs for Vipers – check torque specs for your model year).
Link to installation instructions:
http://nebula.wsimg.com/2348b07510090add63762215274cb0ba?AccessKeyId=4EF98E231536788212BE&disposition=0&alloworigin=1
