Overview

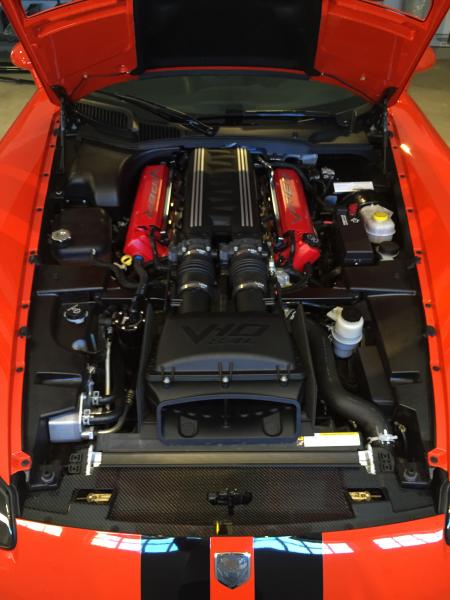

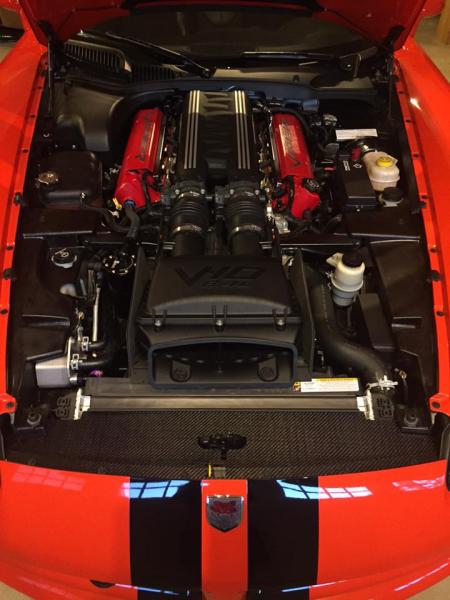

The main purpose of the DSE closeout panel is to direct the path of high pressure cool air from the grille through the radiator and / or airbox as desired instead of flowing around into the engine bay without being utilized. Another advantage of the closeout panel is improved look under the hood.
The result is more efficiently used air – lower coolant temperatures when running on the track, and/or more airflow into the airbox depending on the version of panel and the configuration used.
Versions

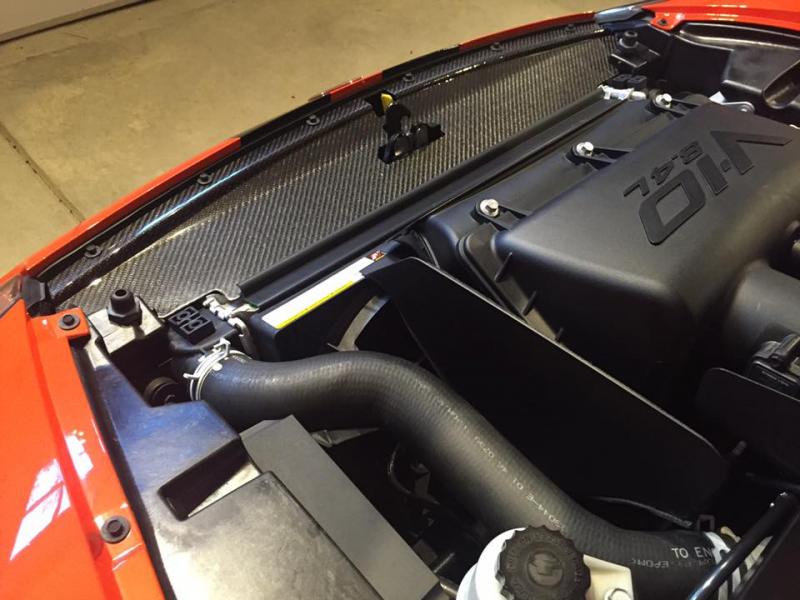

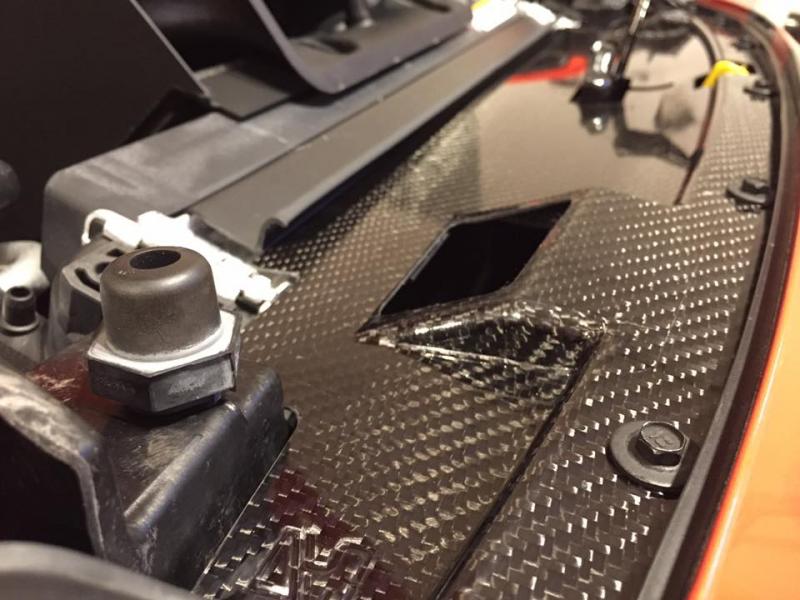

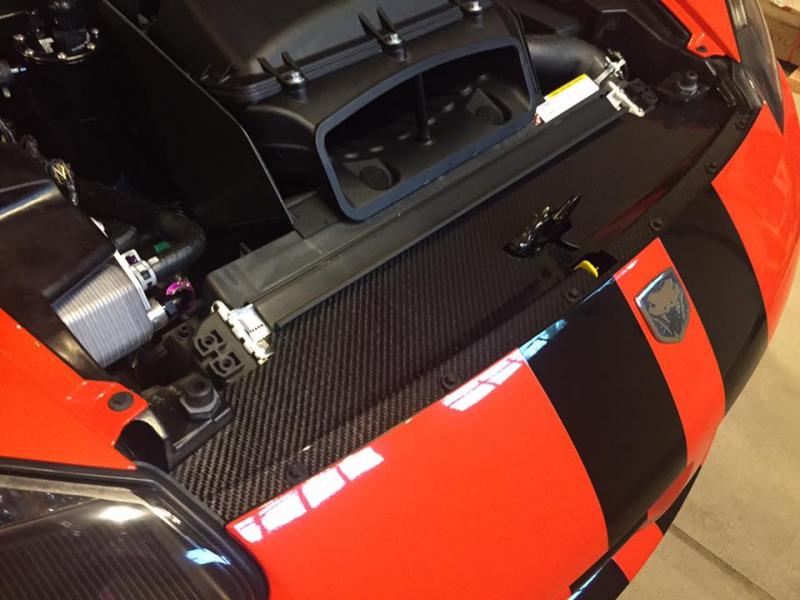

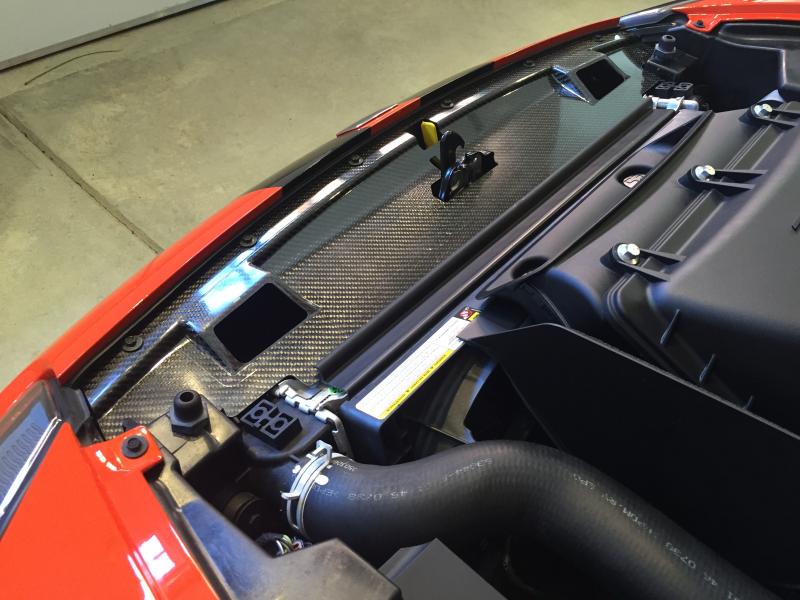

There are 2 versions of the panel: “standard” and “ram air”. The standard version is a flat design that promotes maximum cooling airflow at all times. The “ram air” version has molded outlets that feed the Gen III and IV hood ducts with high pressure air to feed the airbox.
Configuration
One advantage of the “ram air” version is configurability, where the holes can be blocked as needed when maximum cooling is preferred (on track) but left open when maximum airflow through the airbox is needed (maximum acceleration, reduced IAT, etc.).
Construction
The closeout panel is constructed of hand laid carbon fiber which is cured in an autoclave. An automotive clear coat is applied for UV stability. The panels are 100% USA made by motorsport professionals.
Variations / Ordering Information:
http://dougshelbyengineering.com/Viper.html
DSE-VP-CP-001 – Gen III / IV (2003-2010) Standard Closeout Panel
DSE-VP-CP-002 – Gen III / IV (2003-2010) “Ram Air” Closeout Panel
Installation Instructions
DSE-Dodge-Viper-Gen-III-and-IV-Carbon-Fiber-Closeout-Panel-2.pdf
